Atraumatic Needles for Spinal Anesthesia
Spinal anesthesia is widely used, yet 5–8% of attempts fail1, often requiring conversion to general anesthesia—causing delays, discomfort, and higher complication risks like post-dural puncture headache (PDPH).
Discover how needle design impacts spinal anesthesia success.2
Learn why atraumatic Pencan® needles reduce PDPH risk and improve patient safety.
The content of this webpage is exclusively reserved for registered medical practitioner. Click "Confirm" to verify you are a registered medical practitioner.
Confirm Yes, I am a health care professional. Cancel No, I am not a health care professional.Spinal Anesthesia
up to
0%
Clinical guidelines and systematic reviews consistently endorse atraumatic, pencil-point needles as the superior option for spinal anesthesia and lumbar puncture.3 The atraumatic, ogival tip of Pencan® separates dural fibers rather than cutting them, reducing Cerebrospinal Fluid (CSF) leakage and tissue damage.4
Compared to traditional cutting-tip designs, Pencan® significantly lowers the risk of post-dural puncture headache, enhances patient safety, and improves overall procedural outcomes.5
Clinical data show that the use of Pencan® significantly reduces the incidence of post-lumbar puncture headaches—from 7.6% with conventional needles to just 2.3%. In addition, the need for an epidural blood patch is markedly lower, decreasing from 1.8% to only 0.5%.
It is well established that atraumatic needle designs help reduce the risk of PDPH. However, atraumatic needles vary significantly between manufacturers in terms of tip geometry, orifice length, and eyelet positioning6. These differences can impact performance, safety, and user experience.7 Needle design should thus also be considered when choosing an atraumatic needle – not just any atraumatic needle might do.
To deliver anesthetic effectively, the spinal needle must pass through several anatomical layers: skin, subcutaneous tissue, ligaments, and the dura mater. Success is confirmed by the appearance of CSF in the needle hub. However, needle design affects how reliably and safely this confirmation occurs.

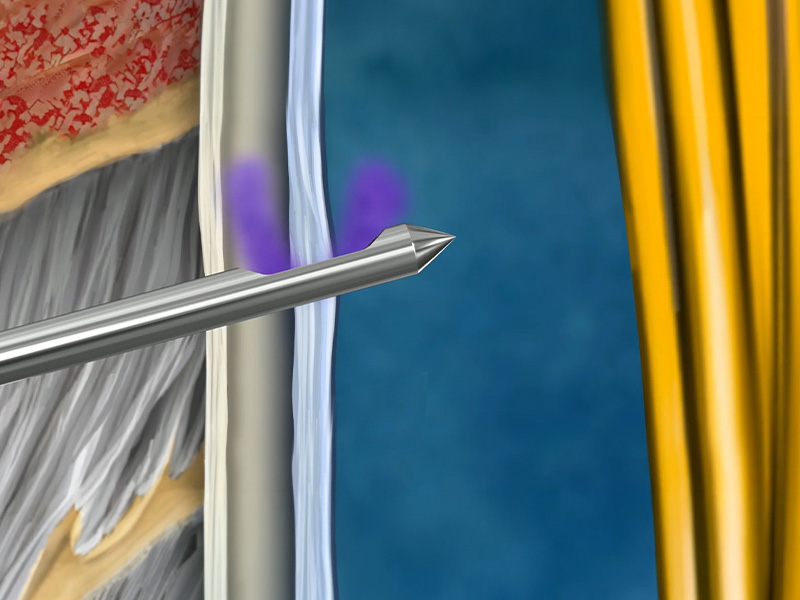

Partial placement can occur, where the orifice lies between the subarachnoid and epidural spaces. This can lead to incomplete drug delivery, despite apparent CSF flashback, and therefore might increase the likelihood of failed blocks. (Fig 1) Small orifices geometrically are less likely to open in both spaces.8

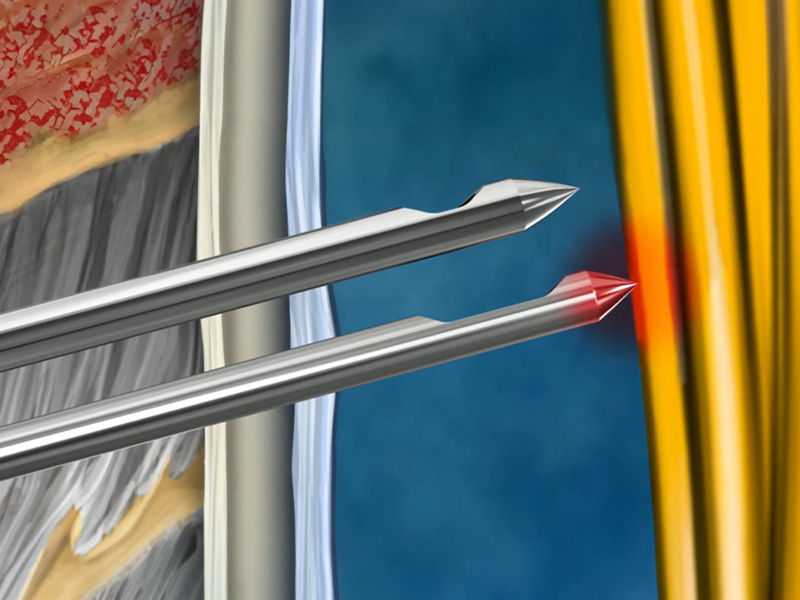

Placing a needle too deep into the spinal space might increase the risk of nerve contact and the chance of paresthesia.9 (Fig.2) A shorter tip-to-back-of-eyelet distance could help minimize the insertion depth of the needle tip into the subarachnoid space. It can also enable faster CSF return for better control during placement.
Fig.1
Fig.2
Schematic graphic for illustration purposes
Designed to support full intrathecal delivery and thereby to reduce the likelihood of partial or incomplete anesthesia.
Eyelet positioning designed to enable faster CSF flashback, which could aiding correct and quick placement and might help reducing the need for multiple attempts.
Provides a clear “dural pop” for tactile feedback, helps minimize nerve contact, and promotes a clean dural tear—associated with lower PDPH rates.
In the tight spinal space the risk of cauda equina contact should be avoided, especially in pediatric patients. A short orifice to tip distance needs less penetration depth in the spinal space.
WHO recommendations
Intrapartum care for a positive childbirth experience - WHO recommendations: intrapartum care for a positive childbirth experience
link
WFSA Labour Analgesia Declaration
Labour Analgesia Declaration – WFSA
link
ASA Practice Guidelines for Obstetric Anesthesia
An Updated Report by the American Society of Anesthesiologists Task Force on Obstetric Anesthesia and the Society for Obstetric Anesthesia and Perinatology Anesthesiology
link
ASA Statement on Neuraxial Analgesia or Anesthesia in Obstetrics
Standards and Practice Parameters Statement on Neuraxial Anesthesia in Obstetrics
link
1. Kinsella, S.M. (2008). A prospective audit of regional anaesthesia failure in 5080 Caesarean sections. Anaesthesia, 63(8), 822–832. doi: 10.1111/j.1365-2044.2008.05499.x.
2. Batova, R., & Georgiev, S. (2019). Impact of spinal needle design and approach on postdural puncture headache and spinal anesthesia failure in obstetrics. Anaesthesiology Intensive Therapy, 51(2), 77–82. doi: 10.5114/ait.2019.86166.
3. Nath, S., Koziarz, A., Badhiwala, J. H., et al. (2018). Atraumatic versus conventional lumbar puncture needles: A systematic review and meta-analysis. The Lancet, 391(10126), 1197–1204. https://doi.org/10.1016/S0140-6736(18)30493-6
4. Xu H, Liu Y, Song W, Kan S, Liu F, Zhang D, Ning G, Feng S. Comparison of cutting and pencil-point spinal needle in spinal anesthesia regarding postdural puncture headache: A meta-analysis. Medicine (Baltimore). 2017 Apr;96(14):e6527. doi: 10.1097/MD.0000000000006527. PMID: 28383416; PMCID: PMC5411200.
5. Reina, M. A., Puigdellívol-Sánchez, A., Gatt, S. P., De Andrés, J. A., Prats-Galino, A., & van Zundert, A. (2017). Electron microscopy of dural and arachnoid disruptions after subarachnoid block. Regional Anesthesia and Pain Medicine, 42(6), 709–718. https://doi.org/10.1097/AAP.0000000000000667
6. B. Braun technical data report, 2025
7. Reina, M. A., López, A., De Andrés, J. A., Prats-Galino, A., & van Zundert, A. (2007). Variability in the design of spinal needles: Implications for clinical practice. Regional Anesthesia and Pain Medicine, 32(4), 346–353. https://doi.org/10.1016/j.rapm.2007.02.006
8. Rae, J. D., & Fettes, P. D. W. (2023). Mechanisms and management of failed spinal anesthesia. NYSORA – The New York School of Regional Anesthesia. Retrieved from https://www.nysora.com/topics/complications/mechanisms-management-failed-spinal-anesthesia/
9. Reina MA, De Andres JA, Hernández JM, Arriazu Navarro R, Pastor J, Prats-Galino A. Looking for the development of paresthesias in the subarachnoid and epidural anesthesia: A clinical and anatomical analysis. Reg Anesth Pain Med. 2011;36(Suppl):E17–E22. doi:10.1097/AAP.0b013e3182030648.
