Product Portfolio in Pediatrics & Neonatology

Huge Product Portfolio for Safe Pediatric & Neonatal Treatment

B. Braun has a huge portfolio of products able to reduce the risks inherent in the treatment of pediatric and neonatal patients. Many of our product solutions for infusion, nutrition, and pain therapy are perfectly suited for the tiny giants in your care.

As part of your job, you often have to use equipment that is not specifically designed for pediatric or neonatal patients. You have to walk on a tightrope. With our pediatric and neonatology product overview, we give your decisions a firm ground.

On this page

Are you a Registered Medical Practitioner?

The content of this webpage is exclusively reserved for registered medical practitioner. Click "Confirm" to verify you are a registered medical practitioner.

Confirm Yes, I am a health care professional. Cancel No, I am not a health care professional.

Products perfectly suited to the little giants you care about.



Pediatric and neonatal patients require specific medical devices compared to adults because of their unique needs. The differences could be fundamental to development, diseases, defects, and physiological changes.

To meet these specific needs, it is important to use medical devices dedicated to pediatric and neonatal patients as intended. All products shown on the product pages below have no age-related limitations and can be used for both pediatric and neonatal patients.

Nurse in examination room preparing drugs

Patient Access

Central Venous Catheter

Certofix® Mono Paed

Set consists of: Seldinger needle (S)Kink-proof guide wire with flexible J-tipSingle-lumen catheter 22 G: Soft catheter tip / X-ray detectable, opaque / Length markings / Fixation wings at the channel junction for securing the catheterSoft, self-adhesive catheter fixationCable for ECG monitoringInfusion extension lineThree-way stopcock / DiscofixOmnifix® syringe

Certofix® Duo Paed

Set consists of: Seldinger needle (S)Kink-proof guide wire with flexible J-tipDouble-lumen catheter: Soft catheter tip / X-ray detectable, opaque / Two lumen (size depending on set configuration): 4F: distal = 22 G; proximal = 22 G / 5F: distal = 18 G; proximal = 20 G / Length markings / Color-coded Luer-Lock hubs / Fixation wings at the channel junction for securing the catheterMovable fixation with fixation wings for catheter fixation at the puncture siteSoft, self-adhesive catheter fixationCable for ECG monitoringScalpelDilatorSafsite® connectorOmnifix® syringe

Peripheral Venous Catheter

Introcan Safety® 3

Introcan Safety® 3 is a peripheral IV catheter with a passive fully automatic needlestick protection and multi-access blood control septum that helps to protect clinicians and patients from blood exposure. It is a single-use device to generate intravascular and tissue access to sample blood, monitor blood pressure, or administer fluids and blood intravascularly. Introcan Safety® 3 is also indicated for subcutaneous infusion therapies and 325 psi power injector applications (14G – 24G).

Vasofix® / Vasofix® Certo

Vasofix® Braunüle® / Certo is a peripheral IV catheter with an injection port. The single-use device is intended to generate intravascular access to sample blood, administer fluids/medication and blood/blood products intravenously.The device can be used for all patients for which infusion therapy is prescribed. No gender or age related limitations. Vasofix® Braunüle® / Certo can be used for adults, pediatrics and neonates.

Vasofix® Safety

Vasofix® Safety is a peripheral IV catheter with an injection port and a passive fully automatic needlestick protection. The single-use device is intended to generate intravascular access to sample blood, administer fluids/medication and blood/blood products intravenously.The device can be used for all patients for which infusion therapy is prescribed. No gender or age related limitations. Vasofix® Safety can be used for adults, pediatrics and neonates.

Introcan® / Introcan® Certo

Introcan® / Introcan® Certo is a peripheral IV catheter. It is a single-use device to generate intravascular and tissue access to sample blood, monitor blood pressure, or administer fluids and blood intravascularly. Introcan® / Introcan® Certo is also indicated for subcutaneous infusion therapies and 300 PSI power injector applications (18-24G).The device can be used for all patients for which infusion therapy is prescribed. No gender or age related limitations. Introcan® / Introcan® Certo can be used for adults, pediatrics and neonates.

Introcan®-W / Introcan®-W Certo

Introcan®-W / Introcan®-W Certo is a peripheral IV catheter. It is a single-use device to generate intravascular and tissue access to sample blood, monitor blood pressure, or administer fluids and blood intravascularly. Introcan®-W / Introcan®-W Certo is also indicated for subcutaneous infusion therapies and 300 PSI power injector applications (18-24G).The device can be used for all patients for which infusion therapy is prescribed. No gender or age related limitations. Introcan®-W / Introcan®-W Certo can be used for adults, pediatrics and neonates.

Introcan Safety® W

Introcan Safety®-W is a peripheral IV catheter with a passive fully automatic needlestick protection. It is a single-use device to generate intravascular and tissue access to sample blood, monitor blood pressure, or administer fluids and blood intravascularly. Introcan Safety®-W is also indicated for subcutaneous infusion therapies and 300 PSI power injector applications (18G - 24G).The device can be used for all patients for which infusion therapy is prescribed. No gender or age related limitations. Introcan Safety®-W can be used for adults, pediatrics and neonates.

Epidural Anesthesia

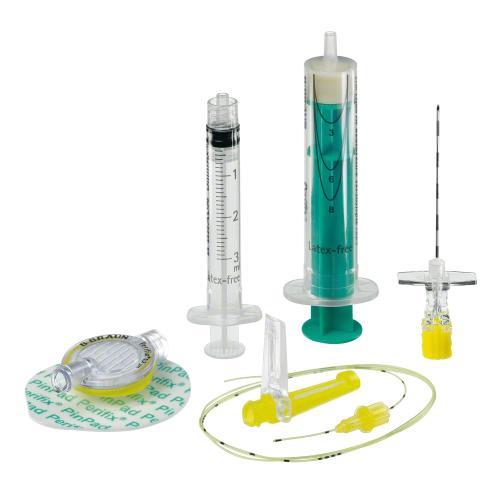

Perifix® ONE Paed Filter Sets with LOR syringe

Perifix® ONE Paed Filter Sets with LOR syringePerifix® ONE Paed epidural sets in suitable sizes for newborns, infants and school children. Catheters with practise-related distance markings for pediatric use, for safer catheter insertion and position control.Perican® Epidural NeedleTuohy bevel0.5 cm length marking1.3 x 50 mm,18 G (for 20G catheteres) or0.9 x 50 mm, 20 G (for 24G catheters)Transparent hub with wingsStylet, color codedPerifix® ONE CatheterMaterial: Polyamid/PolyurethaneLength: 720 mm (24G)/1000 mm (20G)3 pairs of micro-holesSpecial catheter graduation from 20 mm to 200 mmThreading assist guidePerifix® Catheter Connector: "Snap" catheter connectorPerifix® Epidural-filter, 0.2 µmFilling volume 0.45 mlPressure resistant up to 7 barPerifix® PinPadFilter fixation for Perifix® 0.2 µm filtersSelf-adhesivePerifix® Loss-of-Resistance syringe (LOR), Latex-free: Luer SlipOmnifix® Luer Lock Syringe: 2 ml

Peripheral Nerve Blocks

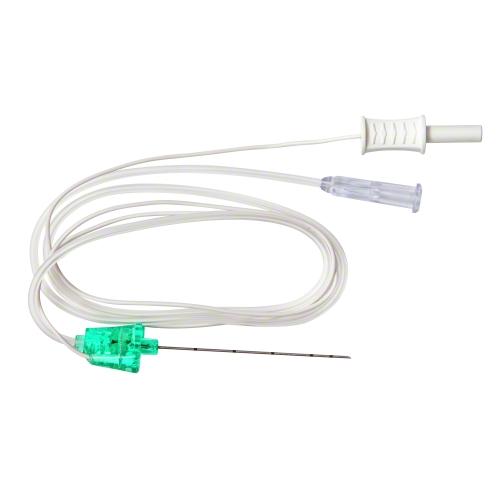

Stimuplex® Ultra 360®

For single shot nerve blocks performed under ultrasound and nerve stimulation (dual guidance). Navigation Safety code for identification of the needle and needle tip positionVisibility 360° X-pattern and clear coating result in better ultrasound visualization and tip identification compared to previous designsTactile Feedback designed for consistent puncture - same 30° back-cut bevel as previous Stimuplex® Ultra and Ultraplex® needlesPediatric Use: The device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

Contiplex® S Ultra 360

For continuous peripheral nerve blocks (cPNB) performed under ultrasound and nerve stimulation (dual guidance).Catheter-through-needle systemCatheter placement system with threading assist guideSide port valve technique for simultaneous injection and aspiration  Contiplex® S Ultra 360® cannulaSafety code for identification of the needle and needle tip position360° X-pattern results in better ultrasound visualization and tip identification compared to previous designs20° facet bevel, together with a high quality coating enables smooth gliding through tissue  Contiplex® ONE catheterVisible under ultrasound  Perifix® catheter connector"Click and ready" system  Perifix® filter 0.2 µmHigh pressure resistance up to 7 bar for enhanced safety  Perifix® PinPadFixation on patient with self-adhesive PinPad for comfort and flexibility  Further set componentsOmnifix®  syringe, 5 ml for priming and aspiration - Side Port ValveCatheter labels (Nerve Block)  Pediatric UseThe device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

Contiplex® Tuohy Ultra 360

For continuous peripheral nerve blocks (cPNB) performed under ultrasound and nerve stimulation (dual guidance).Catheter-through-needle systemCatheter placement system with threading assist guideSide port valve technique for simultaneous injection and aspirationContiplex® Tuohy Ultra 360® cannulaSafety code for identification of the needle and needle tip position360° X-pattern results in better ultrasound visualization and tip identification compared to previous designsTuohy bevelContiplex® ONE catheterVisible under ultrasoundPerifix® catheter connector"Click and ready" systemPerifix® filter 0.2 µmHigh pressure resistance up to 7 bar for enhanced safetyPerifix® PinPad®Fixation on patient with self-adhesive PinPad for comfort and flexibilityFurther set componentsOmnifix®  syringe, 5 ml for priming and aspirationSide Port ValveCatheter labels (Nerve Block)Pediatric UseThe device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

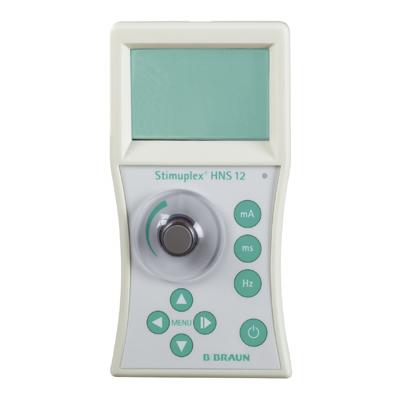

Stimuplex® HNS 12

The enlarged full graphic LC-display gives you all necessary information at a glance, High contrast and a wide viewing angle ensure readability.The following information is permanently displayed:Stimulus amplitude in mA (large digits)Stimulus duration in msStimulus frequency in HzLoad impedance in kOhmCharge delivered in nC (if activated)

Access Port Systems

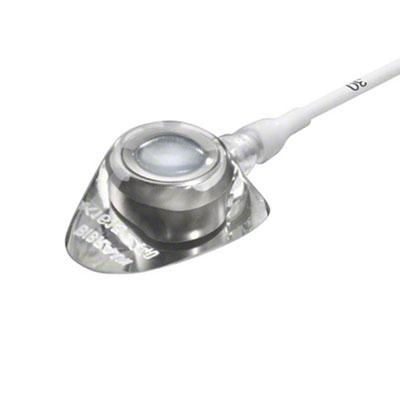

Celsite® Baby / Brachial

Celsite® Baby / Brachial Access Port Systems are indicated for any condition that requires mid to long-term intermittent or continuous venous infusion. They are intended to be used for repeated, intravenous administration of, for example, chemotherapy, antibiotic and anti-viral drugs, parenteral nutrition, blood sampling or transfusion.The very low-profile Celsite® Babyport® is indicated for babies, infants or cachectic adults. Celsite® for brachial implantation is designed to minimize pocket size for comfortable and aesthetic upper or lower arm placement. Special FeaturesCompact port design with large puncture area in relation to the port housing sizeAvailable with radiopaque "CT" marking (except for the US market) which indicates power injectability of the port on x-rayHigh pressure resistance up to 325 PSI (22,4 bar) General FeaturesAnatomic design and lower profiled nose for simplified insertion and patient comfortTitanium chamber for enhanced securityHigh density silicone septum for reliable puncture and to ensure maximum port life2 suture holes to facilitate fixation of the portThe radiopaque catheter is graduated from 5 cm in order to facilitate an easy, precise and safe implantationRounded atraumatic catheter tipReliable radiopaque connection ring with anti-kink protectionMRI compatible, Latex, DEHP and PVC free Available Implantation Technique SeldingerSeldinger, over-the-wire

Preparation

Application

Elstomeric Infusion Systems

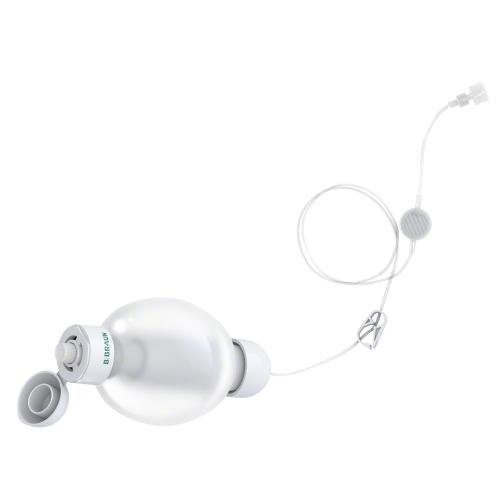

Easypump® II ST/LT

Easypump® elastomeric infusion pumps are designed to give clinicians and nurses the option of delivering pre-determined amounts of medication to the patient in a continuous and accurate manner, either at the hospital or at home.Easypump® is independent of main power supplies or batteries, enabling the patient to be treated in an ambulatory manner. Medication is delivered to the patient by positive pressure applied by the elastomeric membrane. The flow rate is determined by the combination of the flow regulation device (flow restrictor) and the positive pressure of the elastomeric membrane. This pressure delivers the solution against the back pressure of catheters and blood pressure in the patient. Back pressure affects the flow rate.

IV Accessories

Discofix® 3-way Stopcock with Connection Tubing

Discofix® 3-way stopcocks enable needle-free access to the patient and allow the adjustment of flow direction and stop of flow with the handle to control the administration of one or more infusion solutions or liquid drugs in parallel or after each other and / or for injection and aspiration of fluids.Depending on the position of the handle the ports of the stopcock are open or closed. The handle knobs of Discofix® 3-way stopcocks show the opened ports of the stopcocks. Discofix® 3-way stopcock handles are rotatable in a 360° revolving.Being connected to the patient access device (e.g. IVC) Discofix® allows the change of IV Set without having to disconnect from the cannula.Discofix®-3 with extension line (with different lengths)The extension line towards the male port separates the stopcock from the patient to reduce complications such as catheter movement and vascular irritations.

Pumps

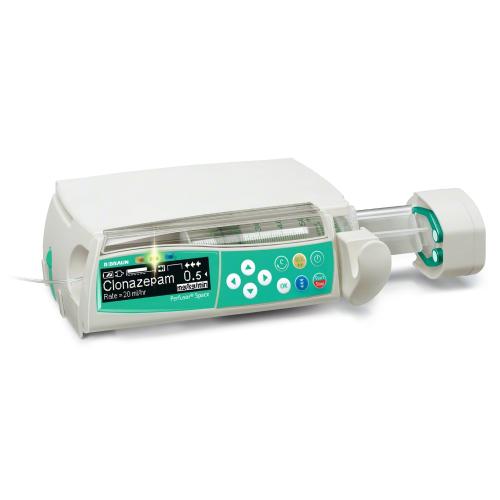

Perfusor® Space

Perfusor® Space is a syringe infusion pump that can be used to configure customized, tailor-made solutions as individual pumps, small therapy units, or a complex infusion system.The small, light and intuitive configuration of the pump provides a user-friendly solution to complex therapies, integrating all clinical areas into one system.B. Braun Space can also be integrated into the data communications network of every advanced hospital operation.
